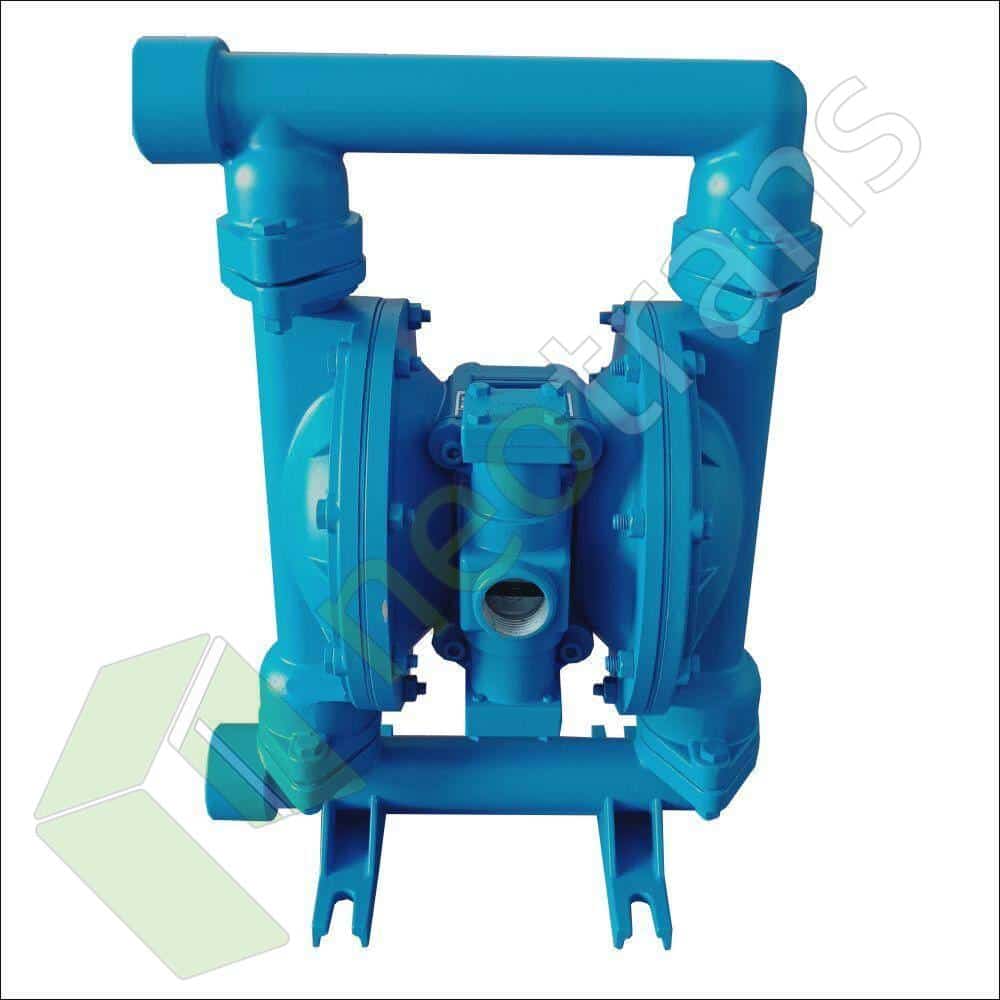

QBY-40, PQBY-40, NPQBY-40 AODD Alüminyum Pompalar
| Product Type | Pneumatic Diaphragm Pump |
| Air Inlet Size (in) | 1-1/2 |
| Air Inlet Thread | Female |
| Air Inlet Thread Type | BSPT |
| Compatible Material | Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Water – Wastewater Transfer |
| Fluid Inlet Size (in) | 1.5 |
| Fluid Inlet Thread Type | BSP |
| Max Air Pressure (MPa) | 0.8 |
| Max Air Pressure (psi) | 120 |
| Max Fluid Pressure (MPa) | 0.8 |
| Max Fluid Pressure (psi) | 120 |
| Fluid Inlet Size (cm) | 5.08 |
| Fluid Inlet Size (mm) | 50.8 |
| Max Air Pressure (bar) | 8 |
| Max Air Pressure (kPa) | 800 |
| Max Fluid Pressure (bar) | 8 |
| Max Fluid Pressure (kPa) | 800 |
| Max Operating Temperature (°F) | 150 |
| Air Exhaust Port Size (in) | 3/4 |
| Air Exhaust Port Thread Gender | Female |
| Air Exhaust Port Thread Type | BSP |
| Application | Industrial |
| Ball Material | Buna |
| Center Section Material | Aluminum |
| Connection Type | Threaded |
| Diaphragm Material | Buna |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Size (in) | 1.5 |
| Fluid Outlet Thread Gender | Female |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Material | Aluminum |
| Manifold Configuration | End Port |
| Material | Aluminum |
| Max Air Consumption (SCFM) | 175 |
| Max Cycle Rate (CPM) | 145 |
| Max Flow Rate (GPM) | 150 |
| Max Solid Size (in) | 0.25 |
| Power Source | Air |
| Seat Material | Buna |
| Fluid Outlet Size (cm) | 5.08 |
| Fluid Outlet Size (mm) | 50.8 |
| Max Flow Rate (L/min) | 568 |
| Max Operating Temperature (°C) | 66 |
| Max Solid Size (cm) | 0.635 |
| Max Solid Size (mm) | 6.35 |
